New! Free shipping on all our products except the Model 6000, which due to it's size, must ship by truck freight!
The Model 1500 TSW Series, our medium-sized, true sine-wave portable solar power systems.
Pictured with optional 200 watt solar panel assembly.
This 1500 watt model True Sine-Wave is our medium sized portable solar power system for those that need true sine-wave power, but don't need as much capacity as our Model 2500 Series generators. It will reliably power the items that are problematic with modified sine-wave inverters, such as laser printers and copiers, which makes it perfect for small offices. It will also provide reliable backup power for your home; keeping cell phones and laptops charged, and keeping a refrigerator or freezer operational.
The 1500 TSW Features a heavy-duty 1500 watt true sine-wave inverter, for hard to power items.
Like all our solar generators, the Model 1500 TSW has features a 30 Amp charge controller, allowing for easy solar array upgrades in the future. It will handle up to 4, 100 watt panels under most conditions.
Both the base unit and any solar panel assemblies are mounted on wheels, which provide the ultimate in portability and ease of use. The entire system can be set up in 30 seconds or less!
The sturdy construction of aluminum, copper, and stainless steel will provide for many years of demanding service with a minimum of maintenance.
Modular construction, and clear instructions allow the owner to easily remove any malfunctioning component and return it to us for repair without having to box up and ship the entire unit.
The finest warranty in the industry means you will NEVER have to pay any labor costs for ANY repairs, as long as you own the unit.
Features:
Solid aluminum RF gasketed EMP-protected case, with lock
1,500 watt continuous output, 3000 watt surge output, true sine-wave inverter
4– 35 amp/hr Absorbed Glass Mat Deep-Cycle Batteries; 140 amp/hr Total Capacity
30 Amp PWM-type solar charge controller
7.2 Amp Smart Battery Charger (AC)
Easy to access 300 Amp ANL-type main fuse, with 2 spares

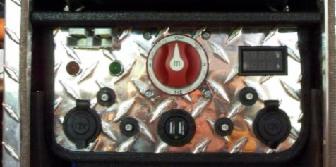

Total of 3 USB charger ports, 2 of which may be used without the inverter being switched on
2 cigarette lighter-style 12 volt DC receptacles
All subsidiary circuits protected by button-reset circuit breakers
125 Amp Anderson connector for booster cable use; either to boost cars or use an auto's charging system
LEDs to indicate correct/incorrect booster cable attachment to car battery
Base Unit Specifications
Assembled Weight: 128 lbs.
Inverter: Samlex 1500 watt True Sine Wave; 3000 watt surge.
Battery Bank: 4- ML35-12 AGM Deep-cycle batteries, 35 Amp/hours each.
Battery Bank Capacity: 140 Amp/hours, 1,680 Watt/hours
AC Charger: NOCO Genius G7200 7.2 Amp Smart Battery Charger
Solar Charger/Controller: Instapark PRS-3030 PWM 30 Amp Solar Power Charge Controller.
In addition to the Bill-me-later option from
Paypal, we
now offer a Lay-away option.
For details, email us at:
Base Unit Cost: $2,413.85Email us at: [email protected] for additional shipping options or other information.
Owner's Manual Download
(PDF Format)
Model 1500 TSW Solar Generator
Both the base unit and any solar panel assemblies are mounted on wheels, which provide the ultimate in portability and ease of use. The entire system can be set up in 30 seconds or less!
Modular construction, and clear instructions allow the owner to easily remove any malfunctioning component and return it to us for repair without having to box up and ship the entire unit.
The finest warranty in the industry means you will NEVER have to pay any labor costs for ANY repairs, as long as you own the unit.
Features:
Solid aluminum RF gasketed EMP-protected case, with lock
1,500 watt continuous output, 3000 watt surge output, true sine-wave inverter
4– 35 amp/hr Absorbed Glass Mat Deep-Cycle Batteries; 140 amp/hr Total Capacity

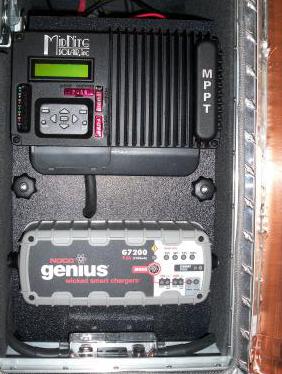

Midnight Kid 30 amp MPPT solar charge controller
7.2 Amp Smart Battery Charger (AC)
Easy to access 300 Amp ANL-type main fuse, with 2 spares
Total of 3 USB charger ports, 2 of which may be used without the inverter being switched on
2 cigarette lighter-style 12 volt DC receptacles
All subsidiary circuits protected by button-reset circuit breakers
125 Amp Anderson connector for booster cable use; either to boost cars or use an auto's charging system
LEDs to indicate correct/incorrect booster cable attachment to car battery
Base Unit Specifications
Assembled Dimensions: 49.5”H x 24”D x 19”W
Assembled Weight: 131 lbs.
Inverter: Samlex 1500 watt True Sine Wave; 3000 watt surge.
Battery Bank: 4- ML35-12 AGM Deep-cycle batteries, 35 Amp/hours each.
Battery Bank Capacity: 140 Amp/hours, 1,680 Watt/hours
AC Charger: NOCO Genius G7200 7.2 Amp Smart Battery Charger
Solar Charger/Controller: Midnight Kid 30 amp MPPT solar charge controller
In addition to the Bill-me-later option from
Paypal, we now offer a Lay-away option.
For details, email us at:
Base Unit Cost: $2,713.85
*Due to the combined weight being over 150 lbs, this machine will ship in multiple cartons by UPS Ground. The base generator is in one carton, the completely assembled solar panel assembly, (if one is ordered) in another, and the batteries in another. The only assembly required is to place the wheels on the axles, and place the batteries in the generator base unit. Each battery weighs only 23 lbs, and simply plugs into a connector. Total assembly time for most people is about 1/2 hour. The only tools required are a Phillips screwdriver, and a pair of pliers (or 9/16" wrench) to install the main fuse.
Email us at: [email protected] for additional shipping
options or other information.
Owner's Manual Download
(PDF Format)
Model 1525 TSW Solar Generator with MK MPPT Controller
